The Ultra-Drum Spill Pallet Standard Model is specifically engineered to withstand heavy loads and facilitate effortless usage and transportation. Crafted entirely from polyethylene (LLDPE), it offers compatibility with a diverse array of chemicals, while its low-rise walls enhance accessibility for pouring. This pallet aids in meeting spill containment regulations for up to four drums and ensures compliance with EPA spill containment requirements.
The innovative “Cross of Life” design protects the pallet’s structural integrity during heavy loads over time. As more weight is applied to the top of the pallet, the Cross of Life design draws the all-polyethylene sides towards the center instead of allowing them to sag outwards. Learn more.
Benefit from the industry’s most robust warranty, offering five years of protection against any defects in material or workmanship. Learn more.
| Product Code | Description | Length (mm) | Width (mm) | Height (mm) | Weight Capacity (kg) | Containment Capacity (L) | Weight (kg) |
|---|---|---|---|---|---|---|---|

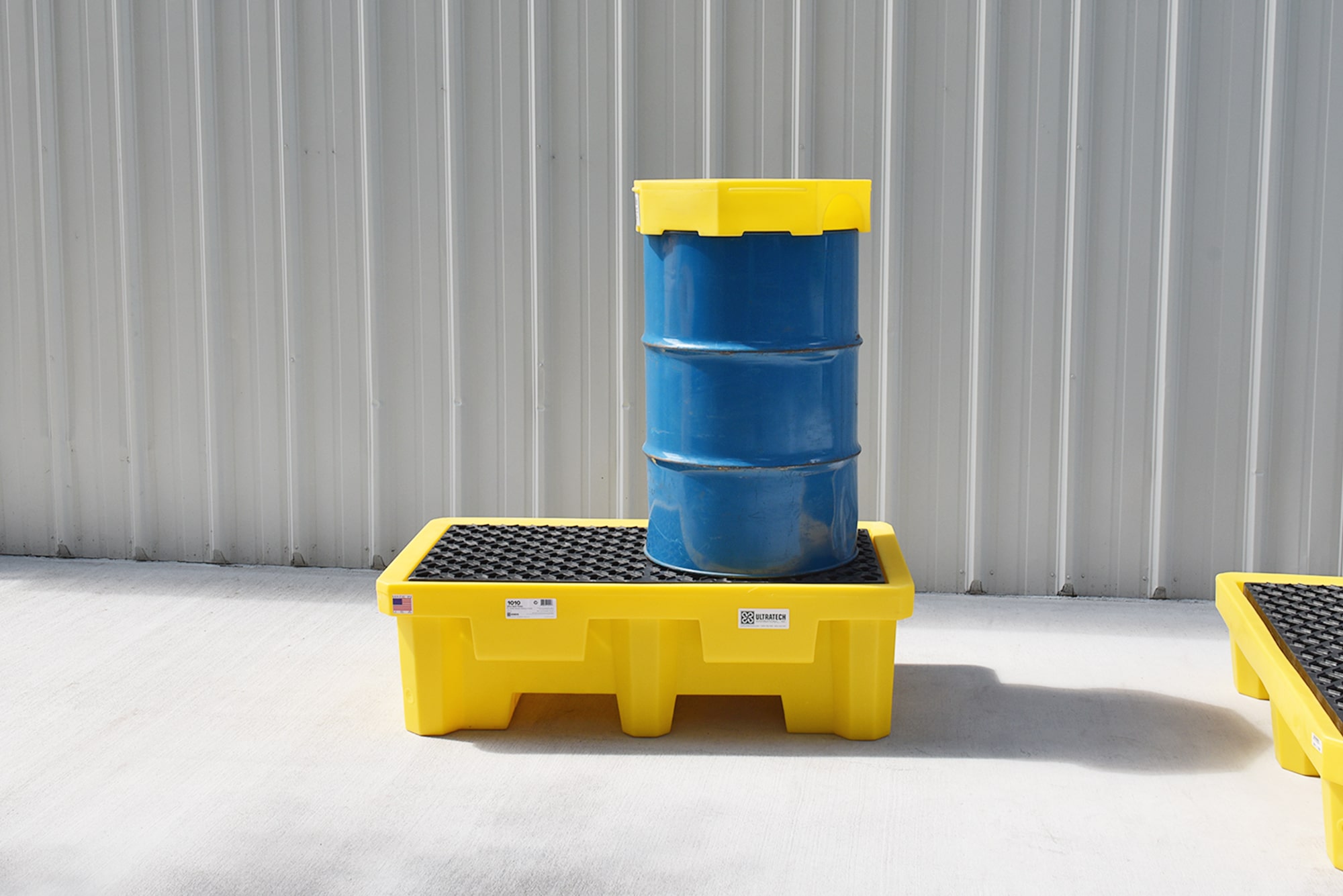

| CHU1010 | 2-Drum No Drain | 1346 | 736 | 419 | 1360 | 250 | 28 |
| CHU1011 | 2-Drum With Drain | 1346 | 736 | 419 | 1360 | 250 | 28 |
| Product Code | Description | Length (mm) | Width (mm) | Height (mm) | Weight Capacity (kg) | Containment Capacity (L) | Weight (kg) |
|---|---|---|---|---|---|---|---|

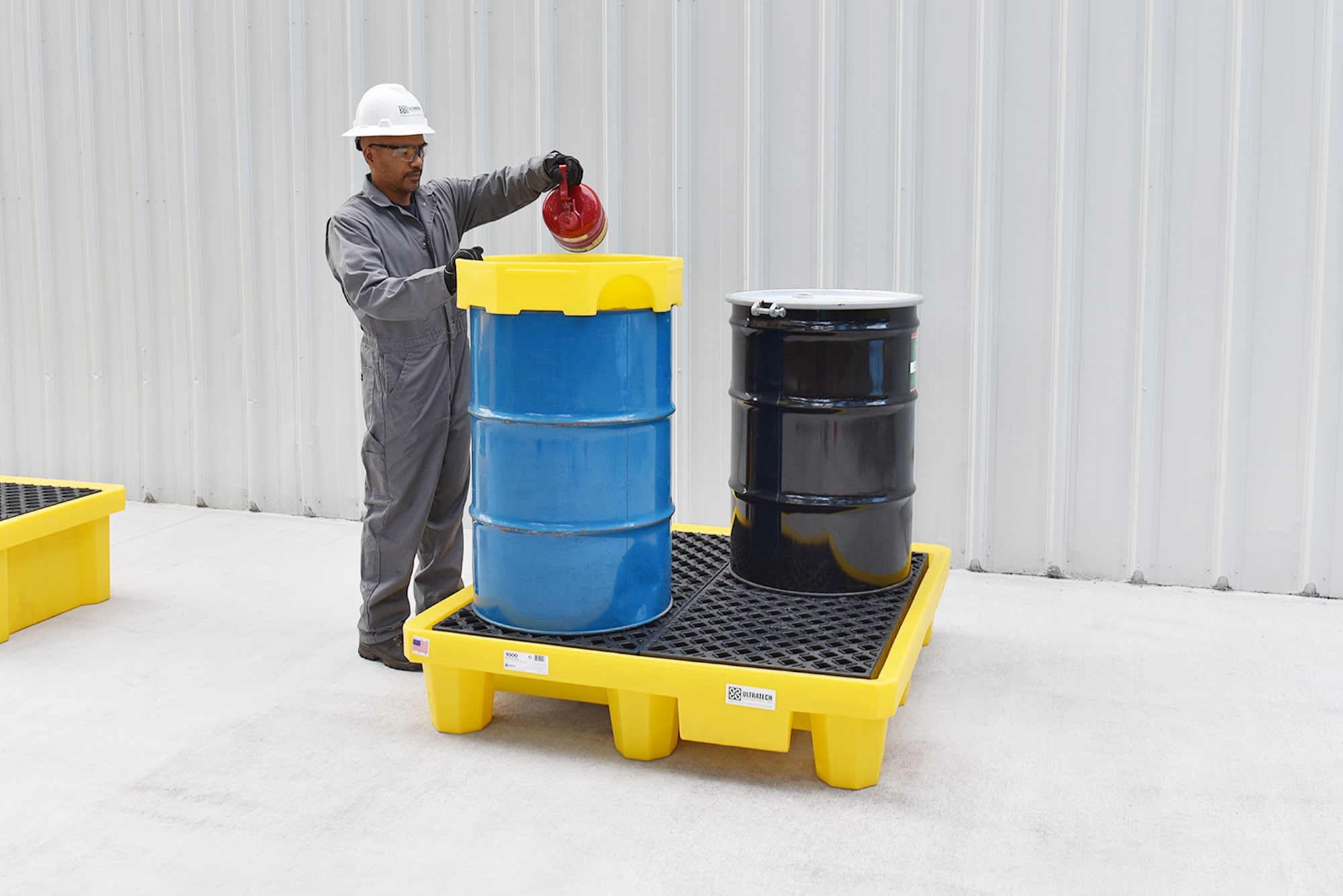

| CHU1000 | 4-Drum No Drain | 1346 | 1346 | 298 | 2722 | 250 | 40 |
| CHU1001 | 4-Drum With Drain | 1346 | 1346 | 298 | 2722 | 250 | 40 |
| Product Code | Description | Length (mm) | Width (mm) | Height (mm) | Containment Capacity (L) | Weight (kg) |
|---|---|---|---|---|---|---|
| CHU1016 | 2-Drum Pullover Cover | 330 | 279 | 76 | N/A | 3 |
| CHU1006 | 4-Drum Pullover Cover | 330 | 304 | 127 | N/A | 3 |
| CHU0678 | Ramp with 533mm Steel Plate | 1739 | 723 | 304 | 1203 | 33 |
The 4-drum model is forkliftable from all four sides. The 2-drum model is forkliftable from either of the two longer (1346mm) sides.
No, we do not recommend moving loaded pallets.
The standard drain is a threaded hole in the sidewall with a 19mm polyethylene plug with NPT threads installed.
Yes, there are two different ways that it can be done. Both are easy to do and inexpensive. Please contact us for more information.
Good arguments can be made for either option so it is difficult to give a single recommendation. Some users prefer to have a drain to make clean-up easier. If a spill occurs, the drain plug can be unscrewed and the contents can drain out into an appropriate container. Others feel that the drain plug is something that could be unscrewed (for cleaning or maintenance) and then forgotten. Needless to say, that would make for a very ineffective spill containment pallet.
The standard drain is a threaded hole in the sidewall with a 19mm polyethylene plug with NPT threads installed.
We recommend using a pump like the Bladder Pump (Product CHU2345) used with our Ultra-Spill Deck Bladder Systems.
