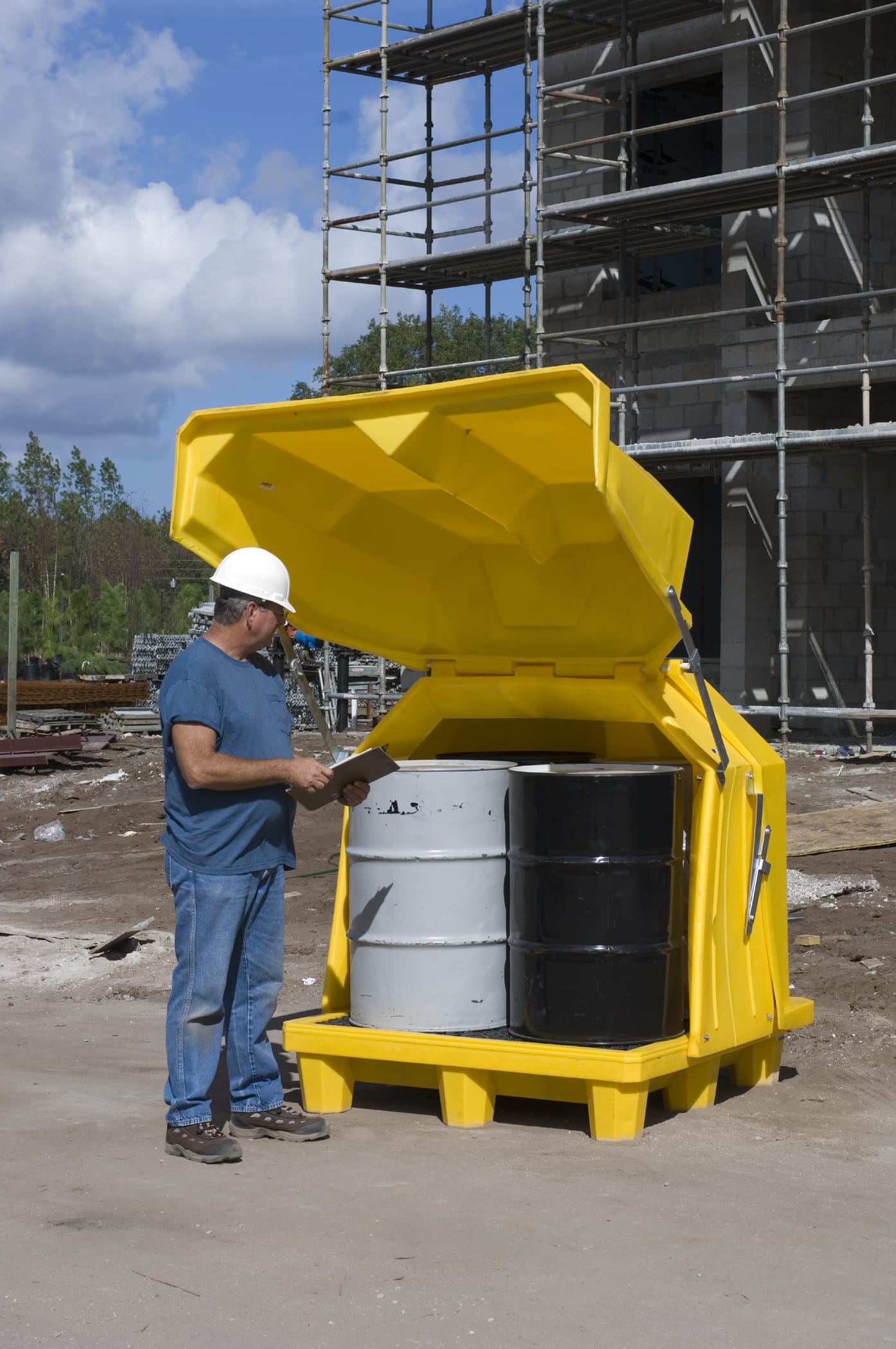

The Ultra-Hard Top 4-Drum Gull Wing is a spill containment system designed to safely store up to four 205 litre drums outdoors. The system features gull-wing style doors that can be easily opened, providing quick access to drums for dispensing and loading/unloading. The system includes a large 250 litres sump that exceeds the EPA spill containment regulations and can be accessed through two removable grating sections. The unit also features steel brackets on either side that enable the lid to be locked in an open position for easier access.
The innovative “Cross of Life” design protects the pallet’s structural integrity during heavy loads over time. As more weight is applied to the top of the pallet, the Cross of Life design draws the all-polyethylene sides towards the center instead of allowing them to sag outwards. Learn more.
Benefit from the industry’s most robust warranty, offering five years of protection against any defects in material or workmanship. Learn more.
Product Code | Description | Length (mm) | Width (mm) | Height (mm) | Weight Capacity (kg) | Containment Capacity (L) | Weight (kg) |
CHU1080 | 4-Drum, No Drain | 1447 | 1371 | 1638 | 2721 | 250 | 102 |
CHU1081 | 4-Drum, With Drain | 1447 | 1371 | 1638 | 2721 | 250 | 102 |
Product Code | Description | Length mm | Width mm | Height mm | Weight Capacity kg | Product Weight kg |
CHU0678 | Ramp with 533mm, Steel Plate | 1739 | 723 | 304 | 317 | 33 |
No, we do not recommend moving loaded hard tops.
The Ultra-Hard Top 4-Drum is rotationally moulded using low-density polyethylene.
Yes, the hard top can be lifted with a forklift or a pallet jack from all four sides.
Yes, the UIltra-Hard Top 4-Drum complies with EPA Spill Containment regulations for the storage of 205 litre drums.
Yes, the Ultra-Hard Top 4-drum uses a “built-in” UV inhibitor to prevent the polyethylene (LLDPE) from breaking down in the sun.
The Ultra-Hard Top 4-Drum is weather-resistant. Water is not likely to get inside during a regular/normal rainstorm. However, in high winds, some rain may get inside the hard top.
Yes, standard padlocks (2) can be used to lock the hard top and prevent any unauthorised access.
Up to 10 years or more depending on several factors. For more information please contact our Sales Team
The most important environmental factors are ultraviolet exposure and chemical exposure. In the absence of chemical compatibility concerns (determined by the UltraTech compatibility chart for PE products), the next most important factor for outdoor, polyethylene spill containment products will be ultraviolet irradiation (UV) exposure. The most important factors with reference to UV are thickness, UV Inhibitor (UVI) content, and pigment color, type, and concentration. Ultraviolet irradiation exposure causes molecular structure and bond changes that result in the embrittlement of PE. Very thin PE can become brittle and fracture in less than a year (think contractor’s PE Visqueen sheeting). Thicker parts take longer to break down. The addition of UV Inhibitors to the PE allows it to sustain more UV exposure without breaking down. Darker pigments, inorganic pigments, and higher concentrations of pigments also individually and collectively will give PE a longer life before appreciable UV damage occurs.
