Flexible Floor Bunding uses high density memory foam encased in heavy duty PVC to form flexible containment lines around equipment, decanting points, and storage areas. Correct installation helps prevent liquids from tracking beneath the bund and supports controlled clean up within the bunded zone.
Installed correctly, it helps prevent liquid from tracking under the bund line and supports cleaner, controlled spill response.
Height | Risk Level | Best For | Drive Over Suitability | Typical Applications | Compatible Products |
50mm (Low Profile) | Low Risk | Simple containment lines with easy movement of people and equipment. Ideal where spills are infrequent and volumes are small. | Occasional low speed crossings where clearance allows |
|
|
75mm (Medium Profile) | Medium Risk | A balance of containment height + drive-over capability. Suitable for areas with moderate spill risk and regular equipment use. | Most drive over friendly option for forklifts and pallet jacks at low speed |
|
|
150mm (High Profile) | High Risk | High-volume containment where preventing liquid escape is critical. Best for dedicated containment areas. Not suitable for drive-over. | Not intended for drive over |
|
|
| PRODUCT CODE | PRODUCT DETAILS |
|---|---|
| CHFFB39 | Flexible Floor Bunding (2mL x 205mmW x 50mmH) |

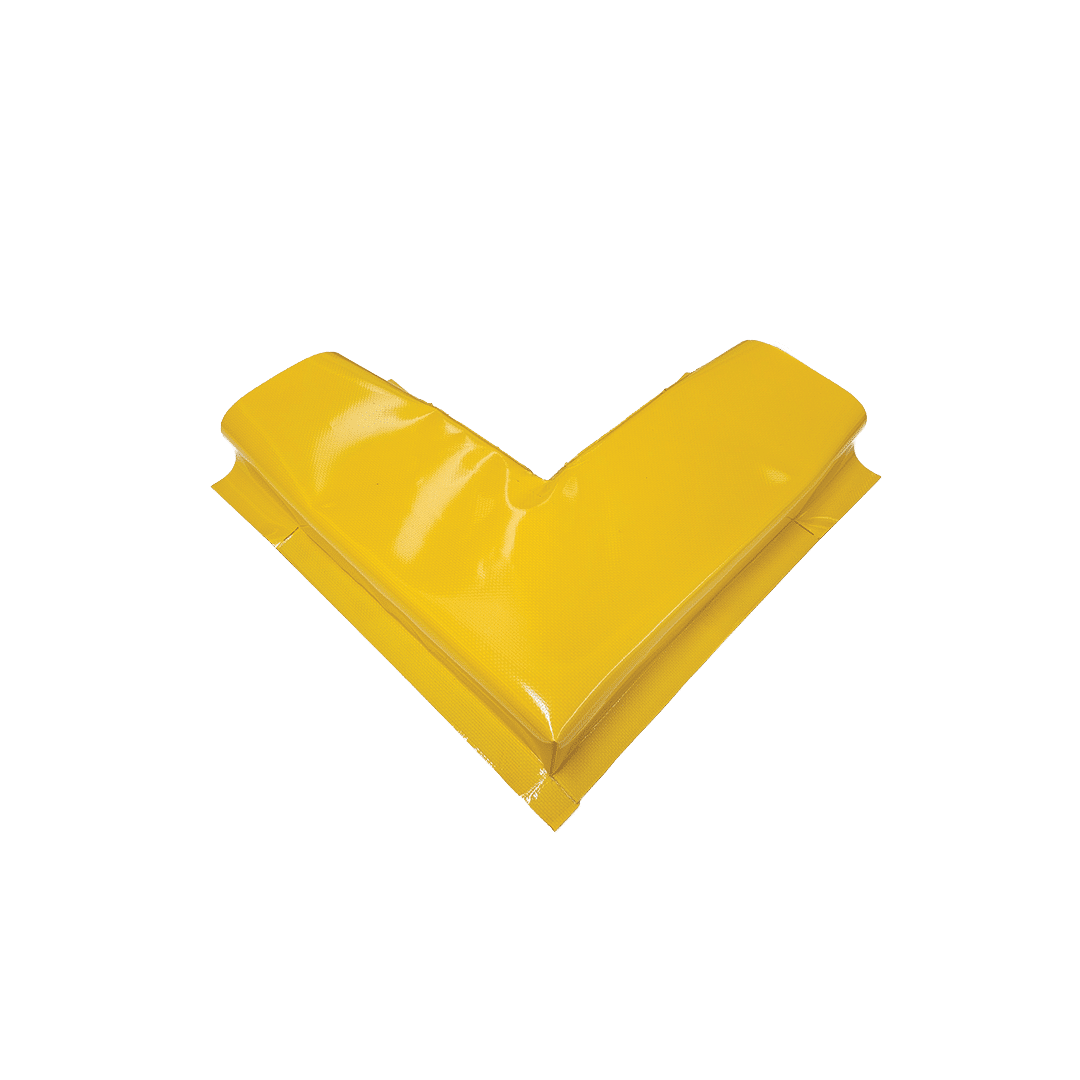

| CHFFB40 | Flexible Floor Bunding 90° Corner Join (300mmL x 205mmW x 50mmH) |
Best for access‑critical zones where trip hazards must be minimised but containment is still required.
Use Cases
Strengths
Limitations
| PRODUCT CODE | PRODUCT DETAILS |
|---|---|
| CHFFB03 | Flexible Floor Bunding (5mL x 205mmW x 75mmH) |
| CHFFB01 | Flexible Floor Bunding (10mL x 205mmW x 75mmH) |
| CHFFB02 | Flexible Floor Bunding (30mL x 205mmW x 75mmH) |
| CHFFB29 | Flexible Floor Bunding 90° Corner Join (300mmL x 205mmW x 75mmH) |
Designed as the optimal drive-over option for general industrial use.
Use Cases
Strengths
Limitations
| PRODUCT CODE | PRODUCT DETAILS |
|---|---|

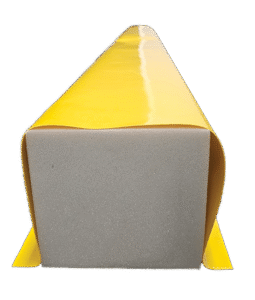

| CHFFB41 | Flexible Floor Bunding (2mL x 205mmW x 150mmH) |

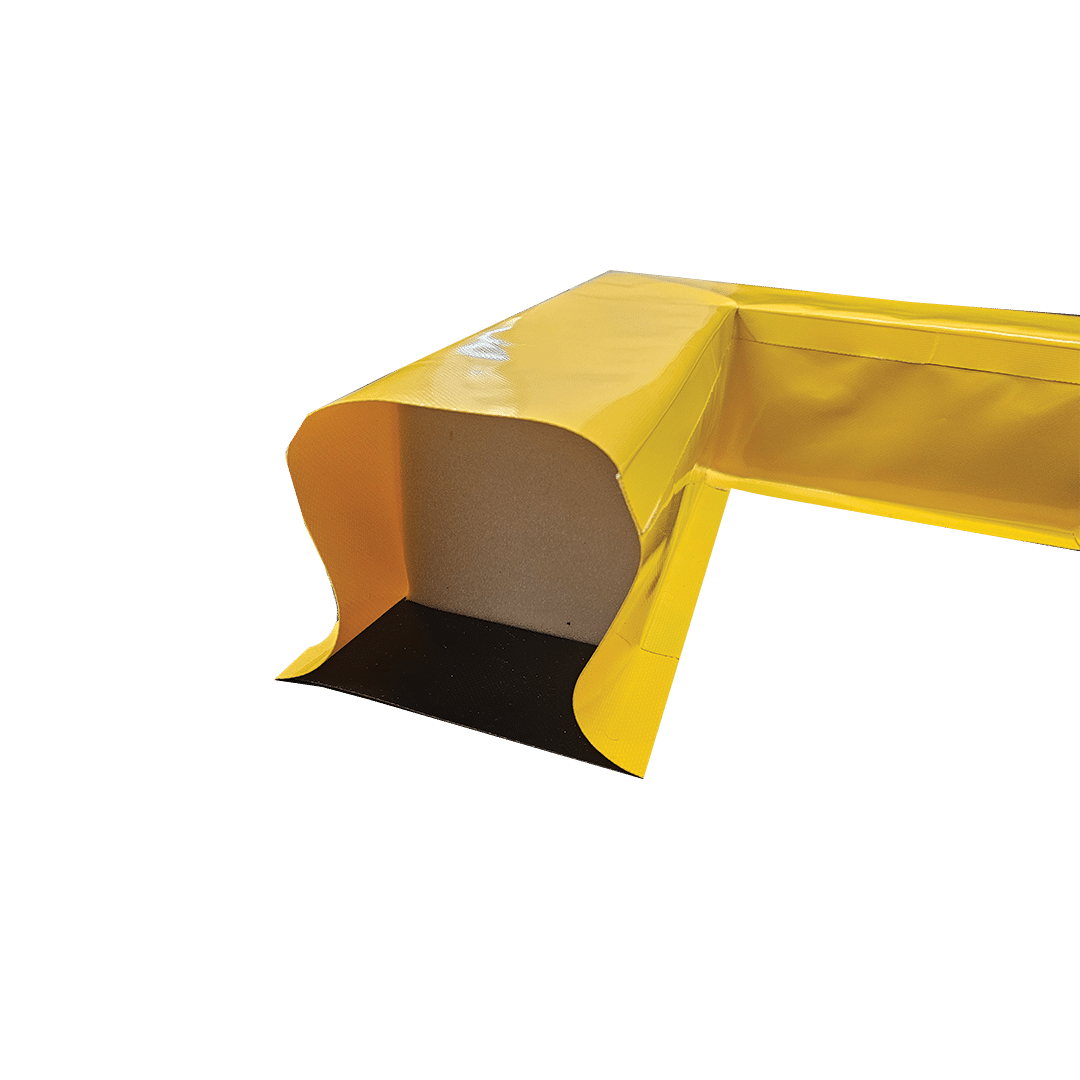

| CHFFB42 | Flexible Floor Bunding 90° Corner Join (300mmL x 205mmW x 150mmH) |
A containment-first barrier wall, not a drive-over product.
This height is typically selected for compliance, hazardous liquids, and areas where bund integrity + volume is more important than access.
Use Cases
Strengths
Limitations
| PRODUCT CODE | PRODUCT DETAILS |
|---|---|

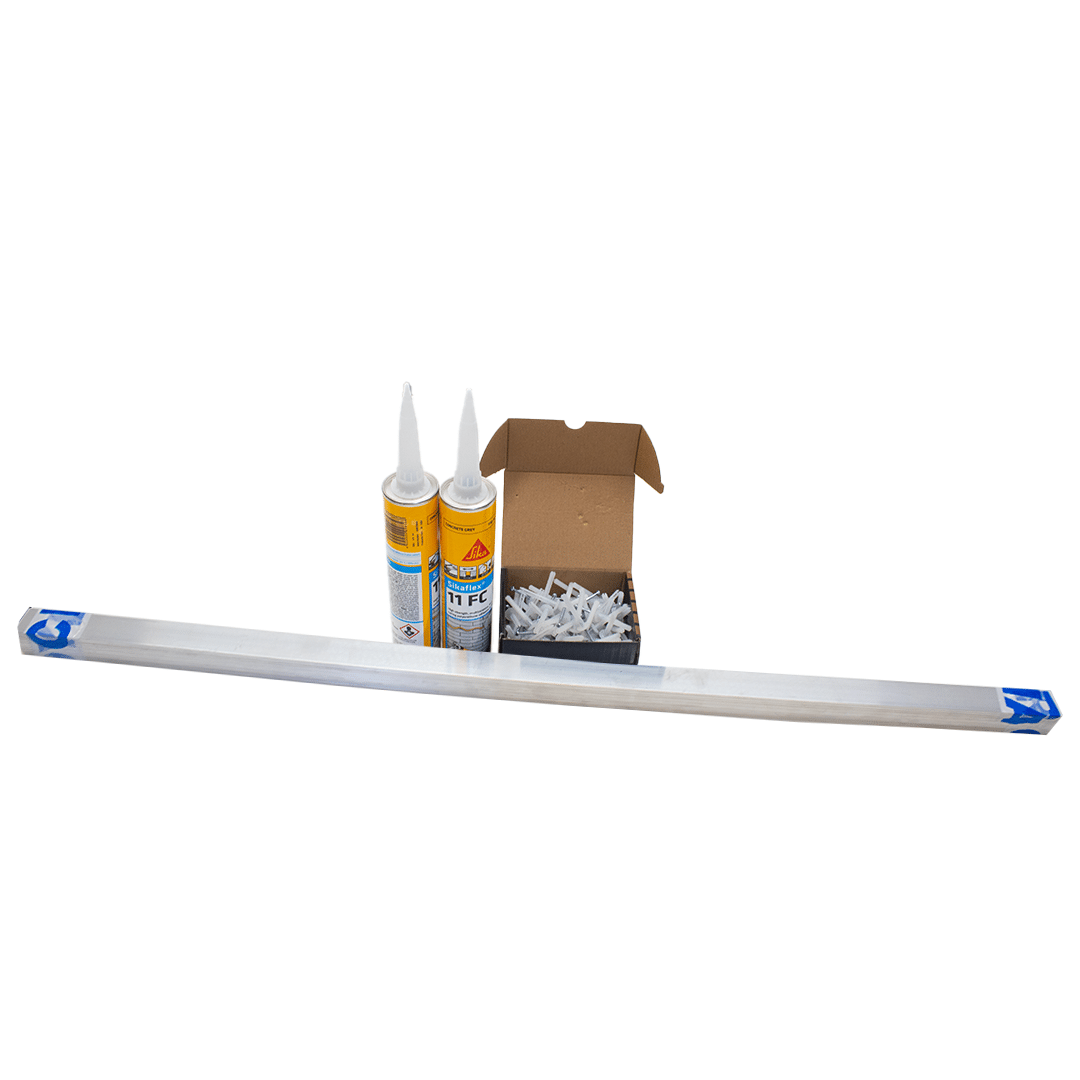

| CHFFB38 | Flexible Floor Bunding Installation Kit for 2mL |
| CHFFB36 | Flexible Floor Bunding Installation Kit for 5mL |
| CHFFB37 | Flexible Floor Bunding Installation Kit for 10mL |

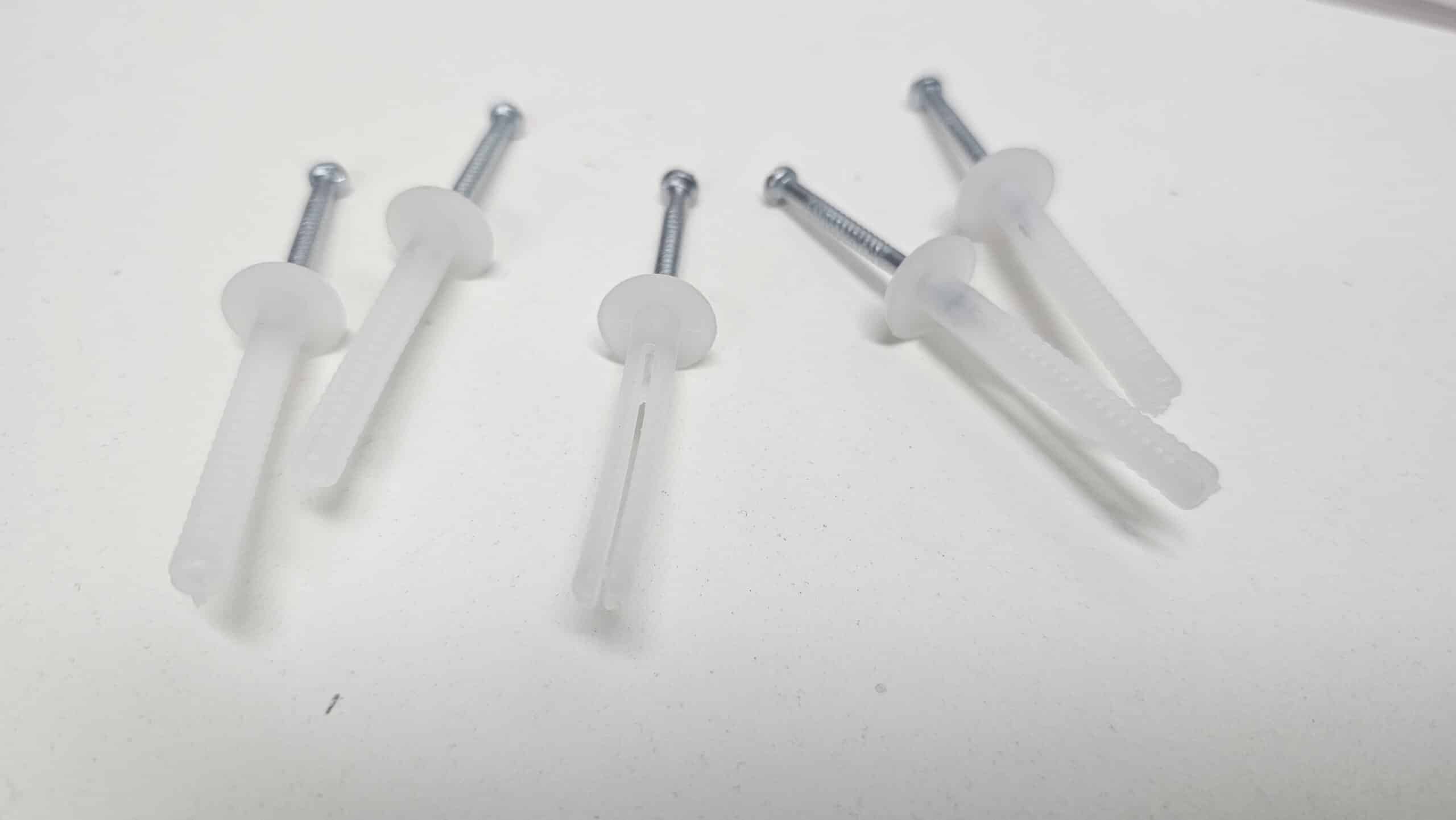

| CHFFB08 | Flexible Floor Bunding Installation Kit for 90° Corner Join |
Yes, where the height and profile are suitable and crossings are controlled. The 75mm triangular wedge profile is typically the most drive over friendly option for low speed forklift and pallet jack crossings. The 50mm option can suit occasional low speed crossings in low traffic areas if clearance allows. The 150mm option is not intended for drive over.
Generally NO. 150mm is a containment first barrier. It is best when traffic can be routed around the bund rather than over it.
Yes. Always confirm forklift and pallet jack ground clearance before purchase and before commissioning a layout.
Correct installation helps reduce liquid tracking under the bund line. Surface condition, adhesion or fixing method, and edge sealing all affect performance.
The 900gsm PVC has very good chemical resistance. Compatibility depends on the specific chemical, concentration, and exposure conditions. If PVC is not suitable, an alternative geomembrane fabric can be supplied by request.
Installation depends on site conditions. Bunding can be secured using adhesive and or mechanical fixing methods as required. Reinforcement with aluminium flat bar can help hold edges more firmly, especially where there is regular low speed vehicle interaction.
Still not sure what floor bunding is suitable for your site? Contact us for quick analysis and recommendation.
