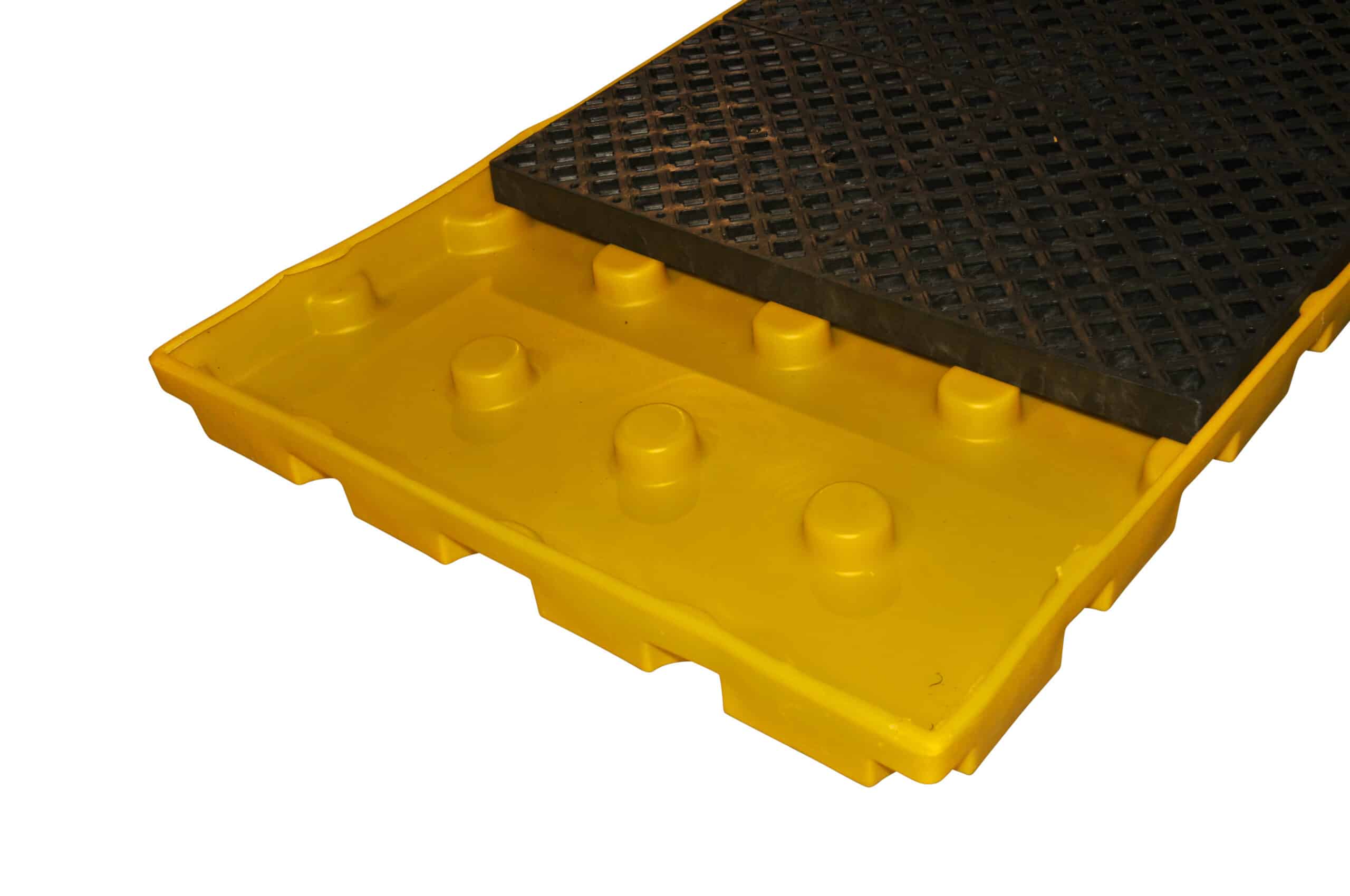

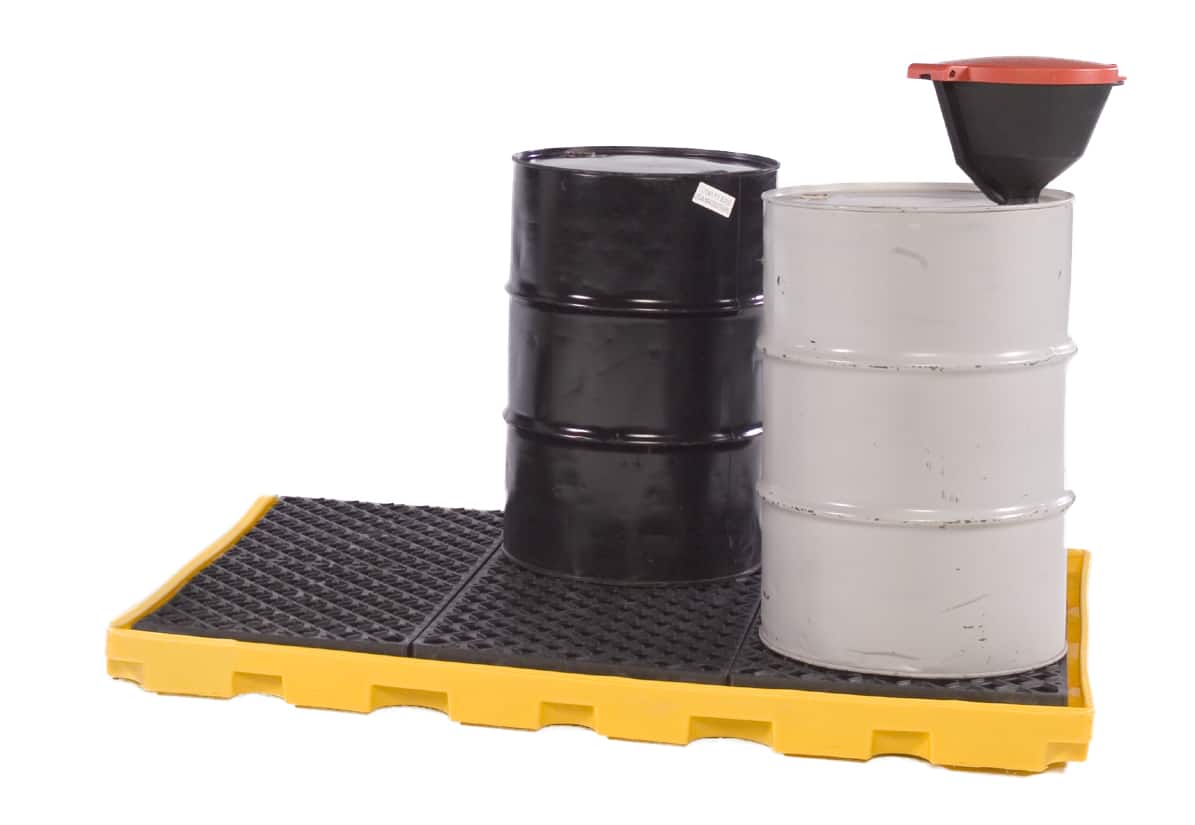

The Ultra-Spill Deck 6-Drum and 8-Drum models feature a single-piece sump with separate grating, eliminating the need for bulkhead fittings or additional modules. Ready for immediate use, simply load your drums and carry on with confidence, knowing your facility is protected against leaks, drips, or spills. Renowned for their modular design, the Ultra-Spill Decks stand as one of UltraTech’s best-selling product lines, catering to diverse customer needs. However, for those seeking a simpler approach to spill containment, the Ultra-Spill for 6-drum and 8-drum models are the best choice.
Benefit from the industry’s most robust warranty, offering five years of protection against any defects in material or workmanship. Learn more.
Product Code | Description | Length (mm) | Width (mm) | Height (mm) | Weight Capacity (kg) | Containment Capacity (L) | Weight (kg) |
CHU1175 | One-Piece 6-Drum | 1886 | 1270 | 133 | 4082 | 250 | 5 |
CHU1075 | One-Piece 8-Drum | 2501 | 1270 | 133 | 5443 | 284 | 10 |
| Product Code | Description | Length (mm) | Width (mm) | Height (mm) | Weight Capacity (kg) | Containment Capacity (L) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| CHU1089 | Loading Ramp for 2-Drum and 4-Drum | 812 | 649 | 146 | 272 | N/A | 8 |
We recommend using a pump (Product CHU2345 can be used) to remove any spilled contents from the sump. (Note: spillage should be pumped into an approved container).
The spill deck ramp (Product CHU1089) comes complete with two steel clips that quickly install on the end of the ramp. These clips hook onto the connecting spill deck and keep the ramp from moving or shifting during loading or unloading. NOTE: The ramp is not designed to be used with the 1-drum spill decks or the short side of the 2-drum spill decks.
Yes, all grating surfaces on the spill decks are slip-resistant.
The spill deck can NOT be moved with a forklift or pallet jack. The design of the spill deck sidewalls sometimes leads users to think that it is forkliftable or able to be moved with a pallet jack. But what may appear to be forklift pockets are actually supports for the grating.
(Note: The answer to this question is based on one assumption: That the spill decks are being used with 205 litre drums). Yes, all the Ultra Spill Deck Inline InLine Models meet EPA requirements. They must be connected to a bladder or another Ultra-Spill Deck to increase the total sump capacity to 230 litres minimum.
All other spill decks use a grating that is 1219mmL x 609mmW x 63mmH or 609mmL x 609mmW x 63mmH.
The 6-Drum and 8-Drum spill decks are designed as “stand-alone” units. They cannot be connected to other spill decks.
